BOPP flower wrapping film (roll/cut sheet)
1.
Smaller roll size (mini roll size)
Thickness : 18UM, 25UM ,30UM,35UM,40UM
Color : Super clear ( transparent ), colored or printed customer's own private logo label
Width : 500MM/600MM/700MM/800MM/1000MM,1200MM
Length : 30M,60M,100M,120M,150M,180M,200M,600M,1000M
Inner core :1.5inches, 1.8 inches ,2 inches ,3inches

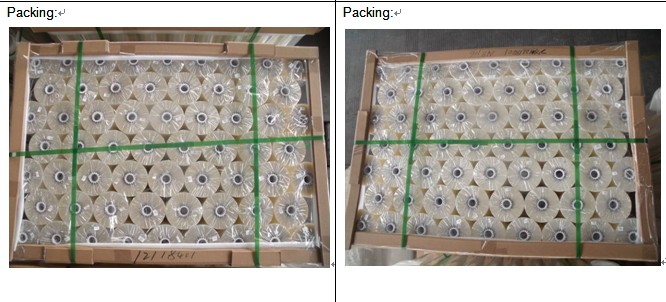

Package : Standard export package ( with cartons and pallets ), 4rolls (or 6rolls)/carton
2.
BOPP Sheets (in piece or page)
Thickness : 18UM, 25UM ,30UM,35UM,40UM
Color : Super clear ( transparent ), colored or printed customer's own private logo label
Width :0.24M,0.36M,0.5M,0.6M,0.8M,1.0M,1.2M
Length : 0.5M,0.6M,0.8M,1.0M,1.1M,1.2M
Package : Standard export package . ---- 200/500pieces/pack( 1000sheets/pack),20 packs/carton , 20cartons/pallets).
3.
Smaller roll size (mini roll size), colored or printed customer's own private logo label
Thickness : 18UM,25UM ,30UM,35UM,40UM
Color : Super clear(transparent ) ,red ,pink ,green ,white ,purple ,blue or printed customer's private logos
Width : 500MM/600MM/700MM/800MM/1000MM,1200MM
Length : 30M,60M,100M,120M,150M,180M,200M,600M,1000M
Inner core :1.5inches, 1.8 inches ,2 inches ,3inches
Package : Standard export package ( with cartons and pallets ), 4rolls (or 6rolls)/carton
4.
BOPP Sheets (in piece or page) ,colored or printed customer's own private logo label
Thickness : 18UM, 25UM ,30UM,35UM,40UM
Color : Super clear(transparent ) ,red ,pink ,green ,white ,purple ,blue or printed customer's private logos
Width : 500MM/600MM/700MM/800MM/1000MM,1200MM
Length : 30M,60M,100M,120M,150M,180M,200M,600M,1000M
Package : Standard export package . ---- 200/500pieces/pack( 1000sheets/pack),20 packs/carton , 20cartons/pallets).
| BOPP flower wrapping film |
| Tech data for customer's reference : |
| |
| TYPICAL PROPERTIES |
UNIT |
TEST METHODS |
TYPICAL VALUE |
| THICKNESS |
Micron |
Micrometer |
25 |
28 |
30 |
35 |
40 |
45 |
50 |
| YIELD |
m2/kg (min.) |
- |
44 |
39 |
37 |
32 |
28 |
25 |
22 |
| DENSITY |
g/cm3 |
ASTM |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
| D-1505 |
| AVERAGE THICKNESS VARIATION |
% (max.) |
ASTM |
± 3 |
± 3 |
± 3 |
± 3 |
± 3 |
± 3 |
± 3 |
| E-252 |
| TENSILE STRENGTH |
kg/mm2 |
MD |
ASTM |
13 |
13 |
13 |
13 |
13 |
13 |
13 |
| (min.) |
TD |
D-882 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
| ELONGATION AT BREAK |
% |
MD |
ASTM |
170 |
170 |
170 |
170 |
170 |
170 |
170 |
| (max.) |
TD |
D-882 |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
| THERMAL SHRINKAGE |
% |
MD |
ASTM |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
| (120° c 15min.) |
(max.) |
TD |
D-1204 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
| STATIC C.O.F. |
film/film |
|
ASTM |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
| D-1894 |
| HAZE |
% (max.) |
|
ASTM |
1.5 |
1.5 |
1.5 |
2 |
2 |
2 |
2 |
| D-1003 |
| GLOSS |
% (min.) |
|
ASTM |
95 |
95 |
95 |
95 |
95 |
95 |
95 |
| (angle 45° ) |
D-2457 |
| CORONA TREATMENT |
Dyne/cm (min.) |
|
ASTM |
38 |
38 |
38 |
38 |
38 |
38 |
38 |
| D-2578 |
